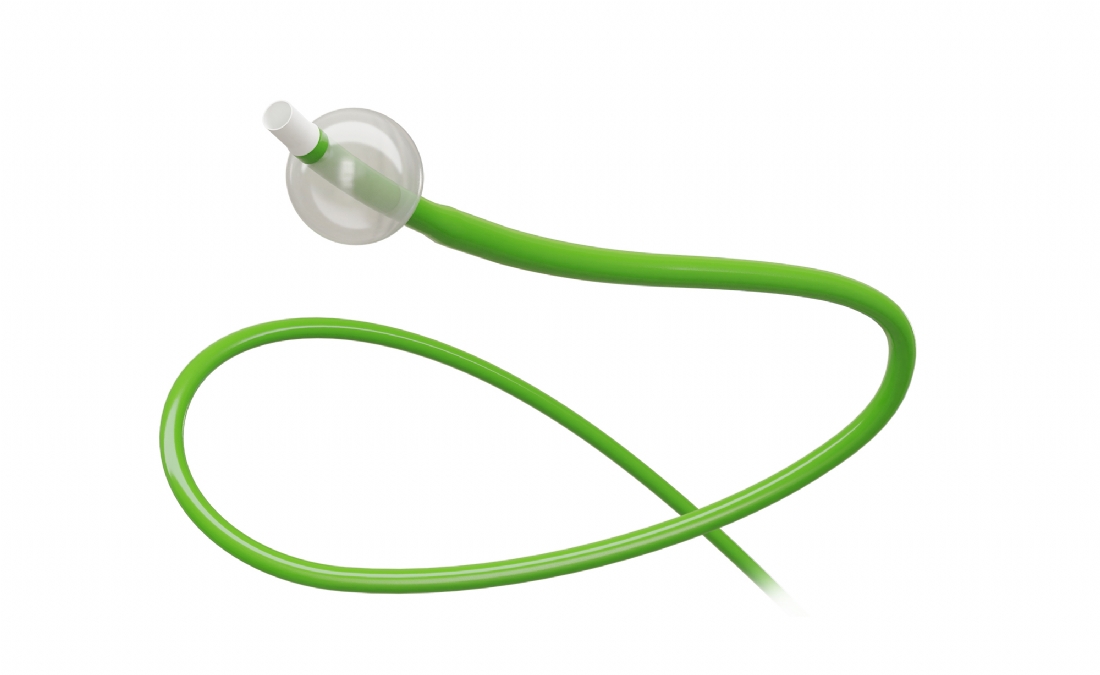

Balloon Guide Catheter

This catheter is indicated for use in facilitating the insertion and guidance of an intravascular catheter into a selected blood vessel in the neuro vascular systems. The balloon provides temporary vascular occlusion during these and other angiographic procedures. The balloon catheter is a conduit for delivering and retrieving devices.

  • Large Lumen with Thin Wall design
  • High compliance balloon block the blood flow efficiently
  • Multi-segment design offers excellent manipulation in tortuous anatomy
  • Reinforced braided structure provides better pushability support
  • Optimal compatibility with Microcatheter and Distal Access Catheter

Balloon Guide Catheter



REF OD(Outer Diameter)
(French/mm)
ID(Inner Diameter)
(mm/inch)
Effective Length of
Catheter (cm)
Dilator Tip
BGC-6-050 6F/1.95mm 1.30/0.052 50 ×
BGC-6-080 80 ×
BGC-6-105 105 ×
BGC-7-050 7F/2.30mm 1.70/0.068 50 ×
BGC-7-080 80 ×
BGC-7-100 100 ×
BGC-8-050S 8F/2.70mm 2.10/0.084 50 Straight
BGC-8-050M 50 Multifunctional curved
BGC-8-085S 85 Straight
BGC-8-085M 85 Multifunctional curved
BGC-8-095S 95 Straight
BGC-8-095M 95 Multifunctional curved
BGC-9-050S 9F/2.90mm 2.20/0.088 50 Straight
BGC-9-050M 50 Multifunctional curved
BGC-9-085S 85 Straight
BGC-9-085M 85 Multifunctional curved
BGC-9-090S 90 Straight
BGC-9-090M 90 Multifunctional curved
