This product is used to introduce interventional or diagnostic instruments into the cerebral and peripheral blood vessels. It can also be intended to aspiration thrombosis and debris from cerebral or peripheral arteries.
- Large catheter Lumen design
- Multi-segment technology and Ni-Ti Coil design deliver exceptional Navigability
- Optimal flexibility enable to pass the tortuous vessels easily
- Stainless steel reinforcing layer offers excellent pushablity support
- Additional combined high-efficient aspiration function

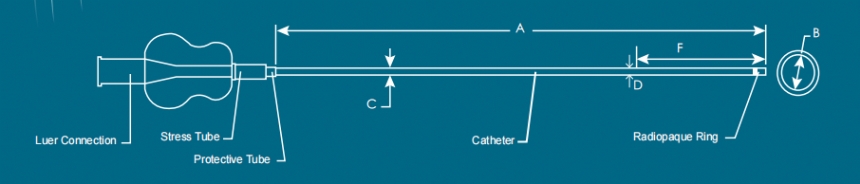

| REF |
Effective Length A(cm) |
OD(Outer Diameter) (French) |
ID (Inner Diameter) B(mm/inch) |
Proximal OD (Outer Diameter) C(mm/inch) |
Distal OD D(mm/inch) |
Distal Soft Segment F(mm/inch) |
|---|---|---|---|---|---|---|
| DAC4-125 | 125 | 4F | 1.05/0.041 | 1.37/0.054 | 1.32/0.052 | 200 |
| DAC4-130 | 130 | |||||
| DAC4-140 | 140 | |||||
| DAC4-148 | 148 | |||||
| DAC5-095 | 95 | 5F | 1.47/0.058 | 1.78/0.070 | 1.73/0.068 | 160 |
| DAC5-105 | 105 | |||||
| DAC5-115 | 115 | |||||
| DAC5-125 | 125 | |||||
| DAC5-130 | 130 | |||||
| DAC6-095 | 95 | 6F | 1.78/0.070 | 2.08/0.082 | 2.05/0.081 | 160 |
| DAC6-105 | 105 | |||||
| DAC6-115 | 115 | |||||
| DAC6-125 | 125 | |||||
| DAC6-130 | 130 |
