The product is intended for the introduction of non-liquid interventional device (such as stents/flow diverters) and infusion of diagnostic (such as contrast media), or therapeutic agents into the neuro, peripheral and coronary vasculature.
- Complete product portfolio with more options
- Multi-segment ultra-flex design offers optimal navigability
- Stainless steel reinforcing layer deliver superior pushability
- Compatible with the Intracranial Aneurysm, Stent Retriever and Flow Guide Device
- Super slippery hydrophilic coating

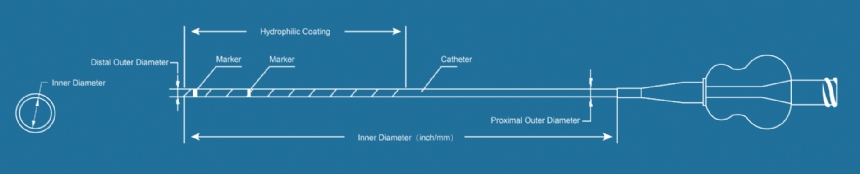

| REF |
Effective Length （cm） |
Inner Diameter （inch/mm） |
Distal Outer Diameter （mm） |
Proximal Outer Diameter (mm) |
Radiopaque Markers |
Tip Shape |
|---|---|---|---|---|---|---|
| MC15-150-2S | 150 | 0.015/0.41 | 0.57 | 0.77 | 2 | S Type |
| MC15-150-2X | 150 | X Type | ||||
| MC15-150-2R | 150 | R Type | ||||
| MC15-150-2J | 150 | J Type | ||||
| MC17-150-2S | 150 | 0.017/0.46 | 0.63 | 0.80 | 2 | S Type |
| MC17-150-2X | 150 | X Type | ||||
| MC17-150-2R | 150 | R Type | ||||
| MC17-150-2J | 150 | J Type | ||||
| MC21-130-1S | 130 | 0.021/0.55 | 0.79 | 0.94 | 1 | S Type |
| MC21-150-1S | 150 | S Type | ||||
| MC21-150-2S | 150 | 2 | S Type | |||
| MC21-150-2X | 150 | X Type | ||||
| MC21-150-2R | 150 | R Type | ||||
| MC21-150-2J | 150 | J Type | ||||
| MC24-130-1S | 130 | 0.024/0.61 | 0.90 | 1.00 | 1 | S Type |
| MC24-150-1S | 150 | S Type | ||||
| MC24-150-2S | 150 | 2 | S Type | |||
| MC27-130-1S | 130 | 0.027/0.69 | 0.93 | 1.00 | 1 | S Type |
| MC27-150-1S | 150 | S Type | ||||
| MC27-150-2S | 150 | 2 | S Type | |||
| MC30-130-1S | 130 | 0.030/0.75 | 1.01 | 1.11 | 1 | S Type |
| MC30-150-1S | 150 | S Type | ||||
| MC30-150-2S | 150 | 2 | S Type |
